Ice baths are all the rage these days. The colder the better. One tattooed, tough-as-nails advocate sets his cold plunge to just above freezing and cranks the flow for extra zing. After years of daily training, how long can he last? Just 3 minutes! Meanwhile, the humble duck paddles icy waters for hours without a shiver. What is it that makes ducks so much tougher than us – not only surviving but thriving in the cold?

The Key to Cold Survival: Don't Flaunt Your Warmth

Just like a wealthy traveler keeps their wallet hidden under modest clothing, ducks hide their warmth behind a cold exterior. Detecting little on offer, the cold surroundings therefore don't ask for much heat. This may sound logical, but it's very difficult to achieve. Humans are terrible at it. We display our warmth like we display our tattoos. Feeble attempts to hide it – a smattering of body hair, constricting blood vessels, goosebumps – do little for us in the bitter cold. We become shivering wrecks within minutes. In contrast, ducks that endure cold winters – such as mallards, eiders, and pintails¹ – are armed with two warmth-hiding superpowers each brimming with features: a formidable heat shield, and phenomenal heat-smuggling passageways.

The Insulation Triad: A Formidable Heat Shield

Most of the duck's body is protected by a heat shield made up of three insulating layers.

Fat is a duck's first line of defence for containing its warmth. Heat passes through fat at less than half the speed it passes through other tissue types,² so a generous fat layer – which in some species accounts for up to 25% of their pre-winter bodyweight³ – puts an effective initial brake on heat loss while serving as a valuable energy reserve. Unlike in humans, the fat layer in ducks maximizes insulation and energy storage without impeding mobility or compromising health.⁴

Down feathers form the second and most potent layer of the heat shield. Ironically, down's insulating power comes from barely existing at all – the down layer is mostly just air. Still air is very poor at conducting heat, and keeping air still is the key role of the down feathers.

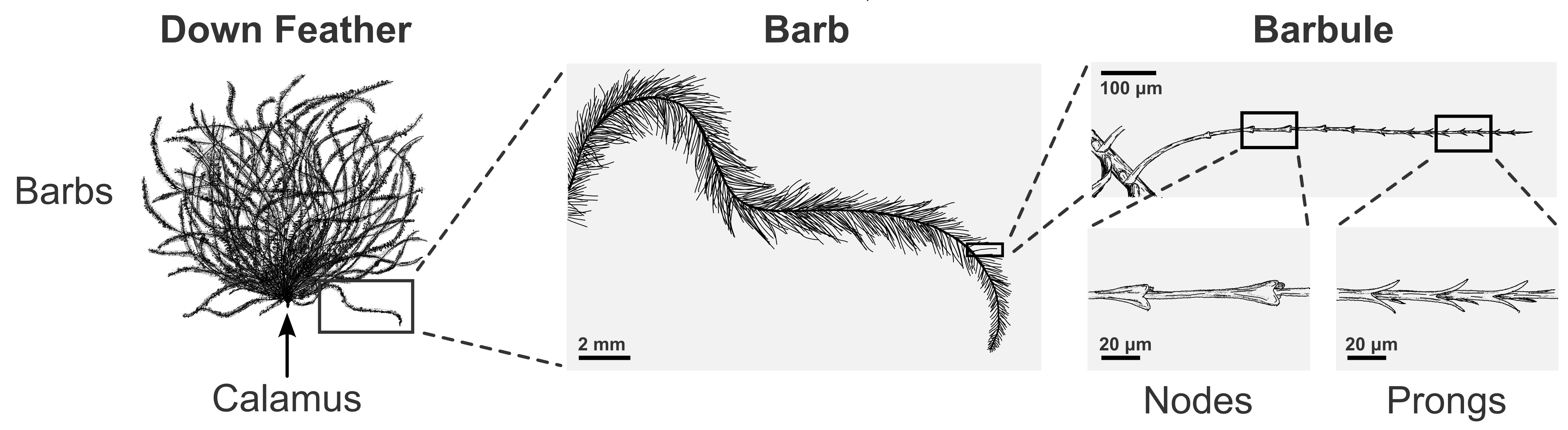

In each feather the central shaft or calamus is just long enough to anchor in the skin before splitting into 20-30 spindly barbs that fan out into a dandelion-like shape. Zoom in further, and a remarkable heirarchical structure is revealed.

Each barb – already thinner than a human hair – bristles with tiny barbules whose shape resembles something from a medieval battlefield. Triangular mace-like nodes decorate the barbule base, and prongs arranged as pitch forks (e.g. in mallards) or tridents (e.g. in eiders) arm the barbule tip.⁵ These savage-looking structures are key to down's remarkable properties, forming an intricate microscopic maze that stops airflow in its tracks. The fine structures are very flexible, allowing the down layer to move and compress. And the nodes and prongs act like tiny latches that help spring the layer back into shape while minimizing heat-conducting contact points.⁶

The down layer at full thickness resists heat flow 20-times better than the fat layer, making it the star of the insulating triad and the envy of scientists trying to match its insulating prowess in synthetic materials.

Contour feathers complete the insulating triad by keeping the down layer dry. Contour feathers boast their own heirarchical structure that provides water repellant surfaces and zipper-like junctions that stay watertight even during diving. Ducks tirelessly bolster the water repellancy during preening, applying a waxy preen oil from their preen gland at the tail base and re-zipping compromised feathers. This meticulous feathercare process – taking up to a quarter their waking hours⁷ – is the price to pay for a toasty dry down layer.

The feather layers also combat heat loss on two other fronts. A dry exterior avoids evaporative cooling, and the intricate feather microstructures redirect a large proportion of infrared radiation – the type of heat that is detected by night vision goggles – back to the duck's skin.

Hidden Heat Passageways: Smuggling Heat Within

The insulation triad provides a formidable heat shield for the duck's body but is painfully absent at the duck's extremities. In these vulnerable areas, alternative systems known as heat exchangers smuggle heat internally to avoid it escaping to the surroundings.

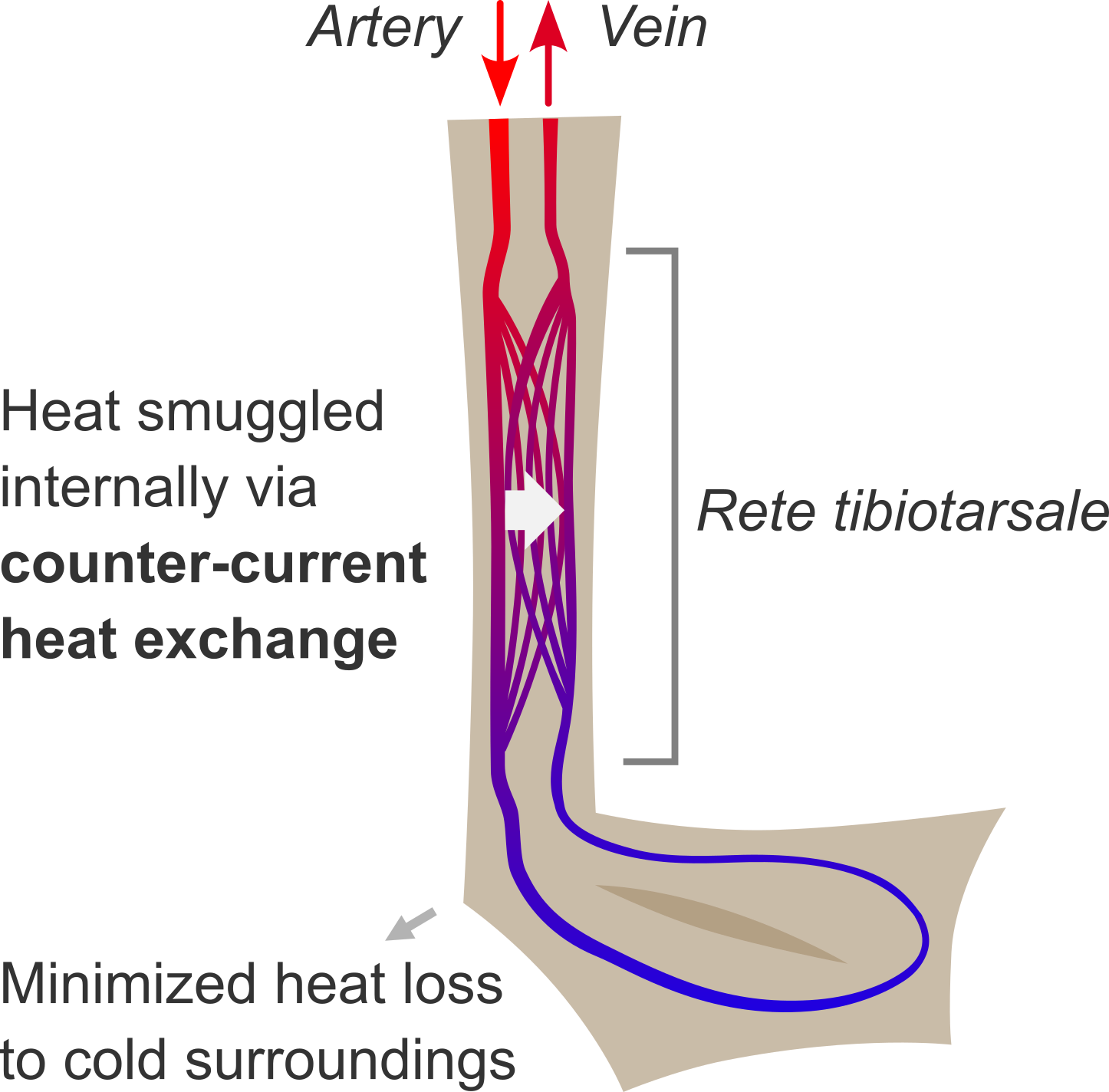

In the legs, a remarkable process called counter-current heat exchange allows warm blood in the arteries to pass its heat directly to cold blood making the return trip. This allows heat to be smuggled back to the duck's core without it escaping to the surroundings. The structure facilitating the handover, called the rete tibiotarsale, looks like something from an engineering textbook. Artery and vein split into a series of parallel channels that interweave each other to maximize contact.⁸ The result is an exquisite heat exchanger capable of 85% heat recovery.⁹ Delivering just enough heat to keep their feet from freezing, ducks lose only around 5% of total body heat through their feet and legs.¹⁰

The duck bill is another engineering marvel that captures heat and moisture by regenerative heat exchange. During breathing, air passes over three pairs of delicate, scroll-like structures called turbinates that significantly increase the surface area of the nasal cavity.¹¹ Hosting a dense network of blood vessels covered by a mucous membrane, the turbinates lend heat to cold air on its way in and efficiently recapture heat as the air flows back out. Moisture is lent and retrieved in the same way. Ducks therefore inhale and exhale relatively cold dry air.¹² Without this heat exchange system, heat loss from the bill – which is already 5-fold higher than from the legs and feet – would increase substantially.¹³

Are Ducks the Heat Trapping Champions? A Look at Nature's Extremes

Ducks' heat trapping abilities are amazing compared to our own, but how do they fare against others in the animal kingdom? Unsurprisingly there is some stiff competition in each heat trapping discipline.

Many species boast impressive fat insulation – in ducks' weight category for example, arctic ground squirrels achieve a world-beating 42% body fat before hibernation.¹⁴ The insulating power of duck down is rivalled by the fur of arctic mammals like foxes and otters,¹⁵ and the heat exchange efficiency in duck legs is challenged by heat recoveries of over 90% in tuna swimming muscles¹⁶ and 80% in emperor penguin legs.¹⁷

But ducks hold their own across each of the heat-trapping categories and are unique in their balance of features that allow them to swim, dive, walk, and fly in the frigid cold. They can also dial down heat trapping within seconds if they get too warm. Is any competitor this multitalented?

Remarkable species are not always rare, remote, or hidden in the pages of textbooks. They might just be in a pond near you.
